Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: GELGOOG Peanut Butter Making Machine
  • Model Number: GG Peanut Butter Making Machine
  • Type: Grain Processing Equipment
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Shea Almond Butter Production Line Peanut Butter Making Machine
  • Name: Peanut Butter Making Machine
  • Application: Sesame
  • Material: 304 Stainless Steel Peanut Butter Making Machine
  • Function: Peanut Shea Butter Making Machine
  • Capacity: 200-300kg/h Peanut Butter Making Machine
  • Usage: Roast Seeds
  • Voltage: 380v/50hz
  • Power: 2.2kw
  • Raw material: Peanut, cocoa, sesame, beans,etc.

Packaging & Delivery

Packaging Details Wooden Packing as Export Standard of Industrial Small Scale Coconut Shea Almond Butter Production Line Peanut Butter Making Machine
Delivery Time Shipped in 15 days after payment

Industrial Small Scale Coconut Shea Almond Butter Production Line Peanut Butter Making Machine

Product Description

Instruction of Peanut Butter Making Machine:

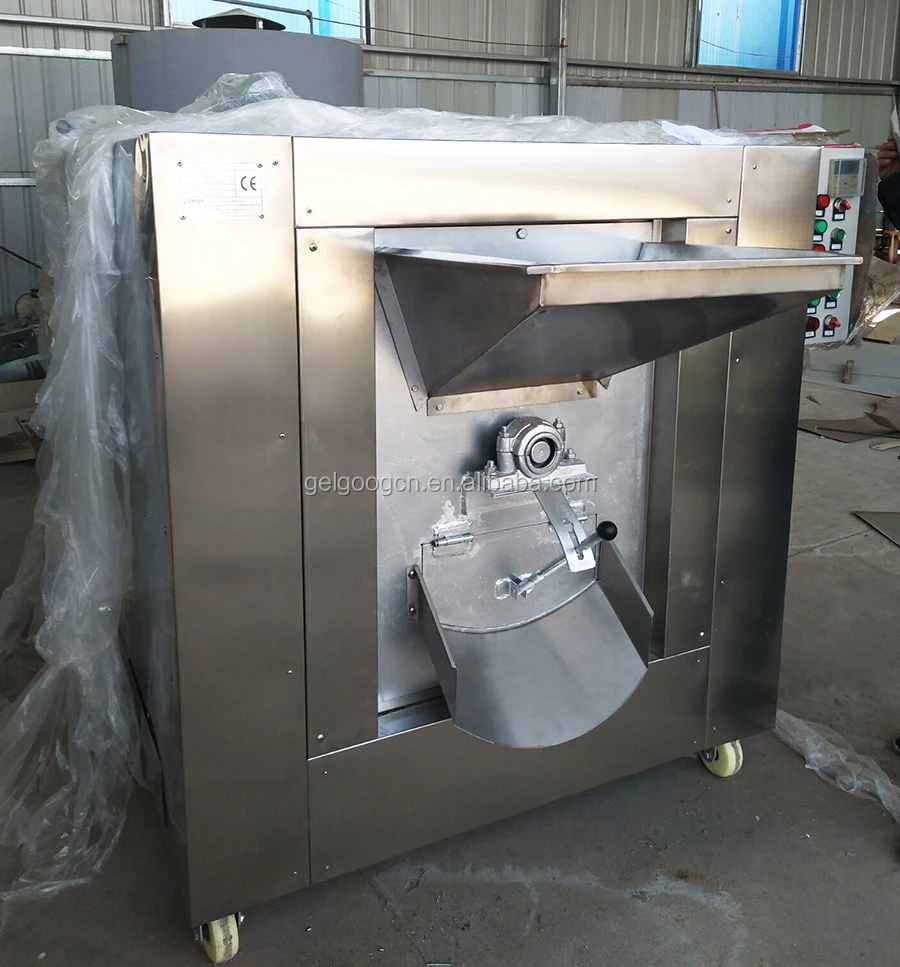

Peanut Butter Making Machine -----Roasting:

Batch roaster’s working temperature is 200-210 ºC, 20

30 minutes. Use batch roaster will bake some delicious smells.

Peanut Butter Making Machine-----Cooling:

Peanut will be send cooling belt to cool.

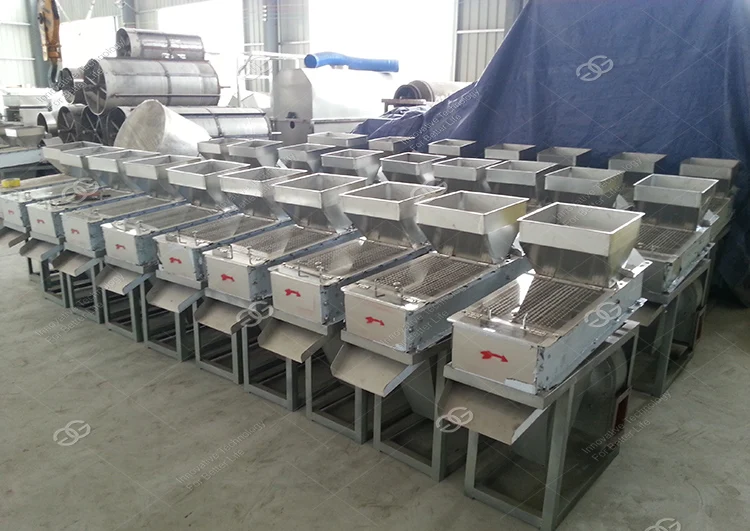

Peanut Butter Making Machine -----Peeling:

Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.

Peanut Butter Making Machine -----Primary grinding:

Using steel grinder to make the first grinding.

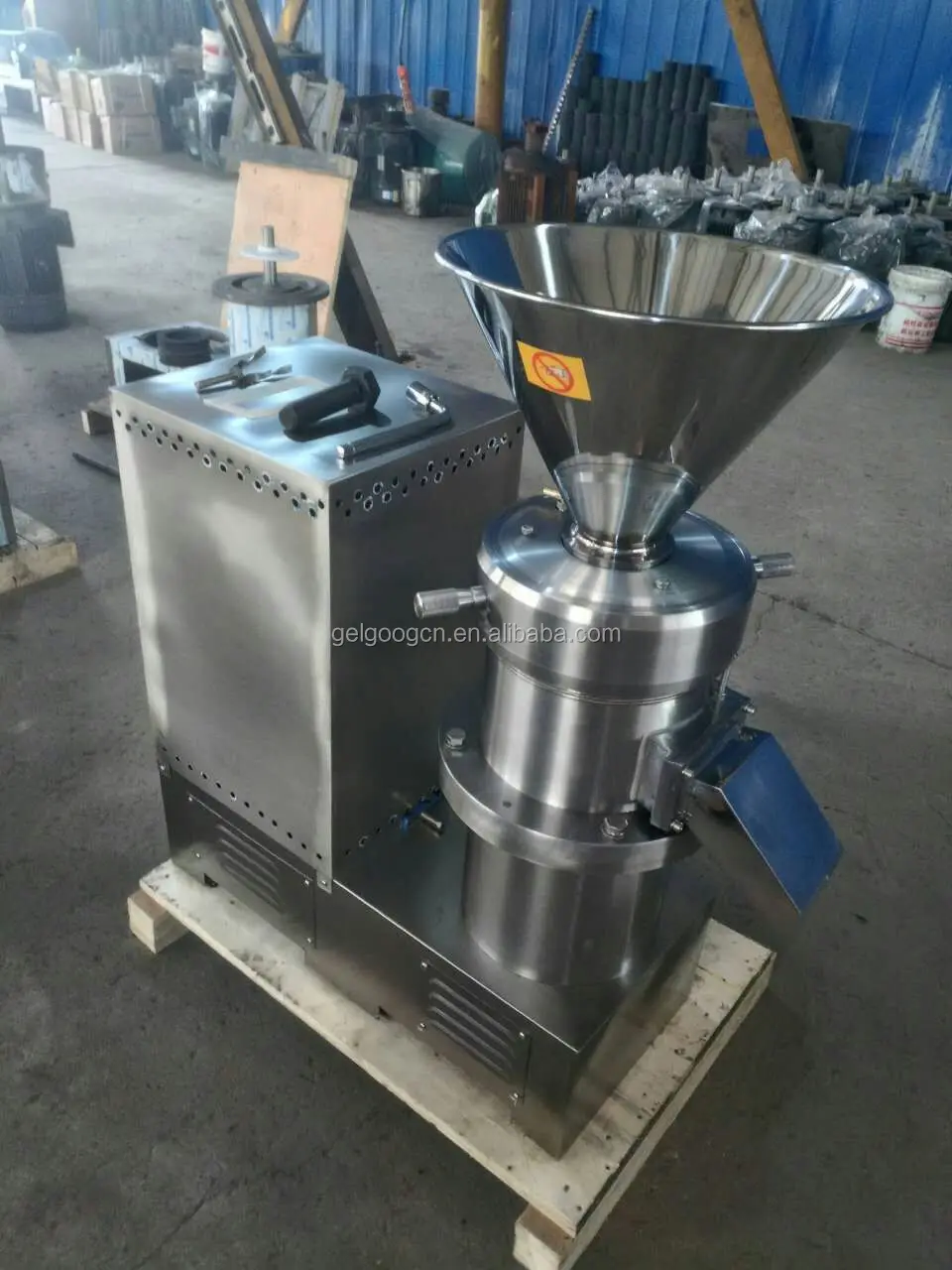

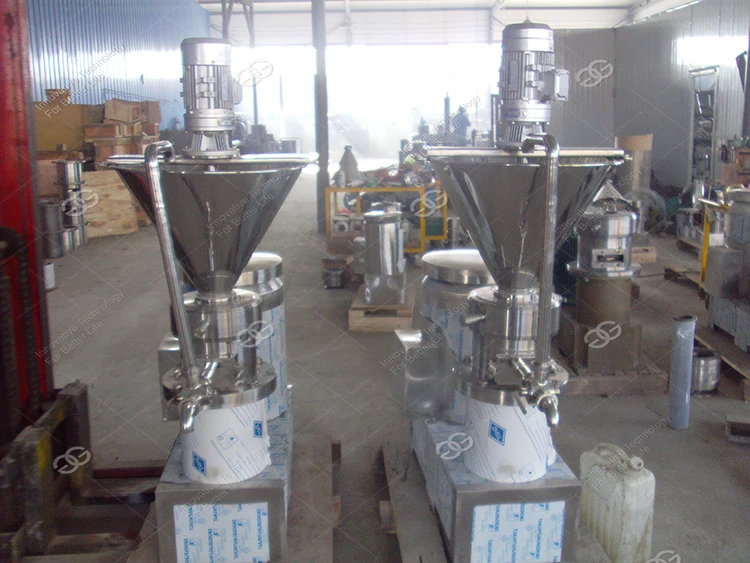

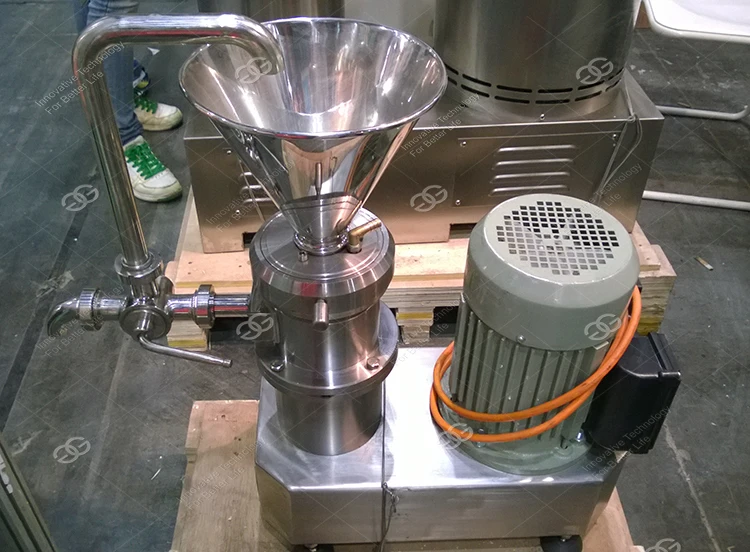

Peanut Butter Making Machine -----Second grinding:

Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.

Peanut Butter Making Machine -----Mixing:

Make the butter more homogeneous.

Peanut Butter Making Machine -----Cooling:

The butter through second grinding should be cooled immediately. The temperature should go down 45C.

Peanut Butter Making Machine -----Degasser:

Take out the air from peanut butter.

Peanut Butter Making Machine -----Storage tank:

Settling down in the storage tank till the temperature drop to air temperature.



No.

Name

Power(kw)

Size(mm)

Quantity(set)

1

Feeding Machine

0.55

700*700*800

1

2

Hoister

0.75

1000*500*2800

1

3

Continuous Roaster Machine

24

3000*1200*2600

1

4

Elevator

0.75

1000*500*2800

1

5

Continuous Cooling Machine

5

3200*800*2400

1

6

Peeling Machine

0.74

1100*350*1100

1

7

Selection Belt

0.75

5000*800*1000

1

8

Elevator

0.75

1000*500*2800

1

9

Storing and Feeding Machine

0.55

700*700*2200

1

10

Grinding Machine

5.5

900*350*900

1

11

Storage tank



150L

1

12

Paste pump

2.2

1200*300*350

1

13

Mixing tank

2.2

200L

1

14

Vacuum tank

2.2

200L

1

15

Paste pump

2.2

1200*300*350

1

16

Control cabinet





1

17

Pipeline









Detailed Images

FAQ

1. Which kind of Henan Gelgoog Company?

 -- Henan Gelgoog Commercial & Trading Co.,LTD,has twenty years experience of the industry development .We have well-experienced managers. Outstanding engineers as well as well trained technical workers . By constant technical exchange with well wellknown firms of the same line in the world and also by introduction of advanced techniques and experiences into our company ,we have extablished a strong technical guarantee system .

2. What is the voltage/phase for this machine?

-- We normally make voltage into 220V/50HZ/Single phase or 380V/50HZ/Three Phase.But it can be made accourding to clients'  demand, like 110V/60HZ/Three phase.

3. What kind of packing box is?

-- we pack machines in a standard exporting plywood case, no vermin,germs.

      help get better protection while transporting.

 4. How long is the guarantee?

-- we promise guarantee as one year for non-human damage factor.

5. How should I do if meet some trouble while using?

-- don't worry about that. we are always be pleased to provide using support to

    clients. we can take a video for showing how to resolve the problem. and write

    detail resolution to you.

6. What's the payment mode?

--T/T,L/C,Western Union or MoneyGram.

Company Information

GELGOOG, founded in 2010, is a large-scale modern manufacturing company specialized in the R&D, manufacturing and sales of food processing machinery, which covers an area of 18,000 square meters. Numerous plants are installed in Netherlands, Kazakhstan, Malaysia, Nigeria, Nepal, Bangladesh, Sri Lanka, Indonesia, Bulgaria, New Zealand, Peru, South Africa, and Saudi Arabia, etc..

GELGOOG machinery located in Zhengzhou,                 Our factory covers an area of 18,000 square

which has convenient transportation. We have                meters, professional company fully integrated

beautiful environment and strong team, which                 research, development, design,manufacturing

helps us achieve great success.                                        as well as marketing.
